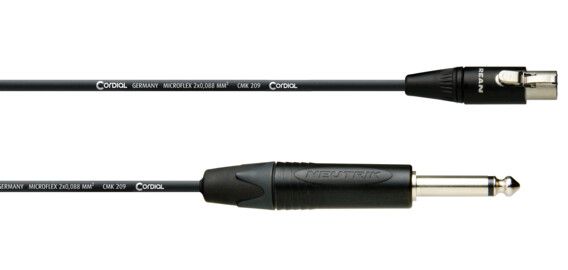

CORDIAL offers a budget-priced, high quality solution for the use of pocket transmitters as an alternative to high-priced original cables, the 4-pin mini XLR to jack plug cable CPI 1 FP-RT 4. Its features solid NEUTRIK NP2 plugs and REAN Mini-XLR connectors. Due to the very thin 0.088mm2 cross-section, CORDIAL’s Microflex CMK 209 is ideal for the intended purpose (suited for product by manufacturers Shure, AT, AKG, MiPro (4-pin), Beyer, T.Bone).
Instrument
select
CPI FP-RT 4
Product information
| cable | ||
| Jacket | PVC | |
| cable assign | F4P | |
| connector brand | NEUTRIK ® / REAN ® | |
| plugs |
1x XLR female tiny 4-pole
1x 1/4" Plug mono
|
technical data
Technical facts
| Conductor area | 0.088 mm² |
| AWG | AWG 28 |
| Composition of conductor | 7 x 0.127 mm |
| Material | bare copper |
| Conductor resistance | < 217 Ω / km |
| Shielding | spiral wound copper wire screen |
| Capacity cond.-cond. (pF/m) | 54 pF / m ± 8 % |
| category | Microphone |
| diameter | 3 mm |
| weight bulk cable | 13 g/m |
| Conductor isolation | PP |
Lenghts & colours
| Colour | Length | Matchcode | item no. |
| 1.00 | CPI 1 FP-RT 4 | 10954 |
