CFIP RR

New

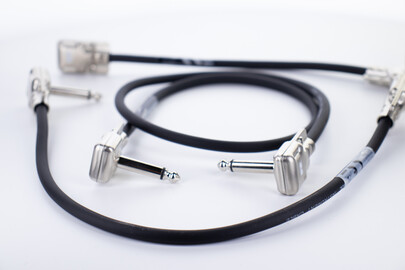

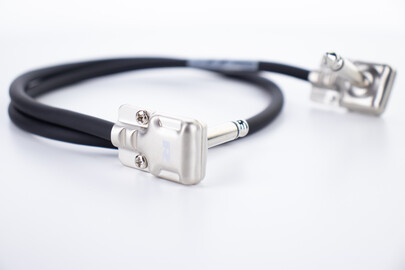

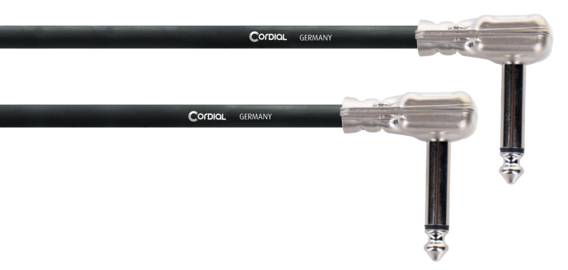

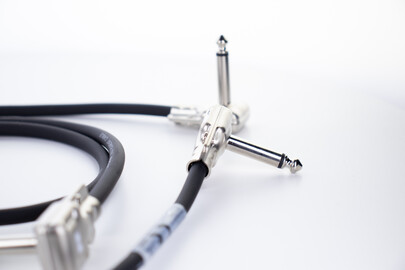

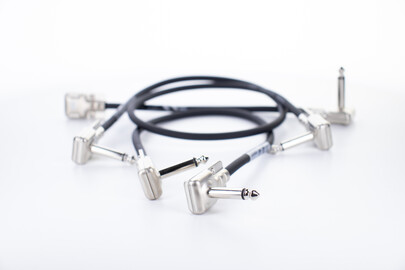

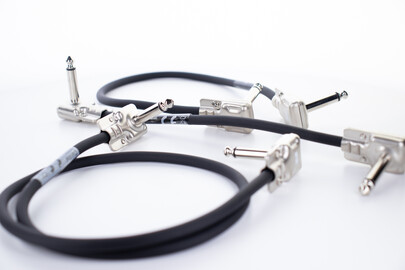

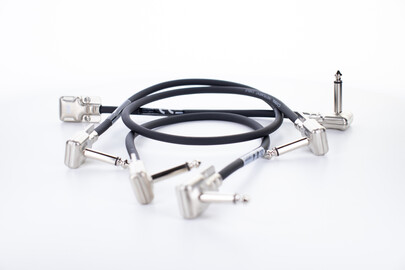

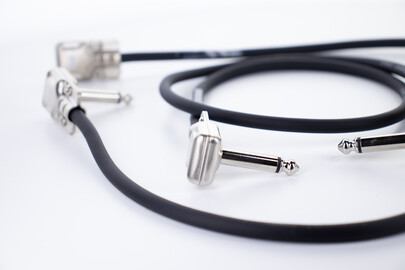

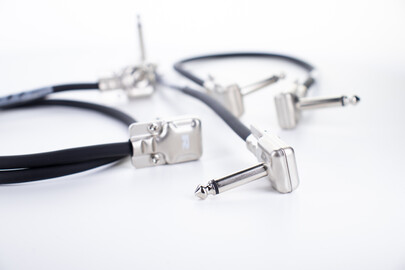

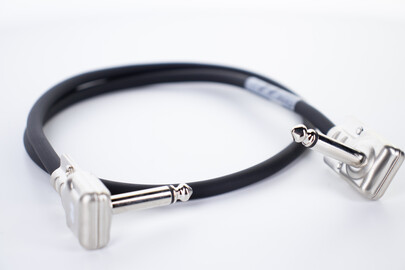

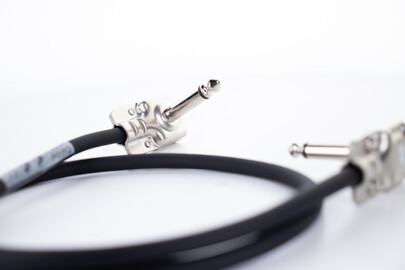

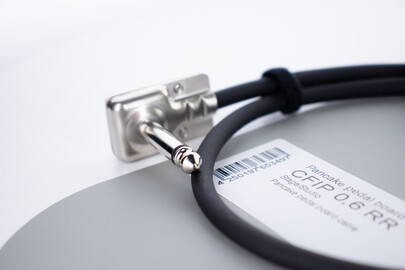

Pancake plug for space-saving pedalboard cabling

Space-saving patch cabling is especially important for complex pedal board constructions. The CFIP RR with its two rectangular flat pancake jacks does not protrude more than 1 cm from the 6.3mm jack socket. The bulk cable is particularly space-saving with a diameter of less than 6 mm and still offers solid inner values: 0.22 mm² conductor area and a shielding made of spiral copper wires for unaltered signals. The most space-saving solution from the Cordial range for foot pedal fetishists.

Product information
cable essentials cable 5
Jacket PVC
cable assign RR
connector brand -
plugs
1x 1/4" Plug right angle mono
1x 1/4" Plug right angle mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 7 x 0.20 mm
Conductor resistance 80 Ohm/km
Shielding spiral shield
Capacity cond.-cond. (pF/m) 140 pF/m
category Instrument
diameter 5.9 ± 0.2 mm
Lenghts & colours
Colour Length Matchcode item no.
0.15 CFIP 0.15 RR 14601
0.30 CFIP 0.3 RR 14602
0.60 CFIP 0.6 RR 14603
