Power-DMX Hybrid
select

CPH DMX 1-5 PWR 1-25 TRUE1

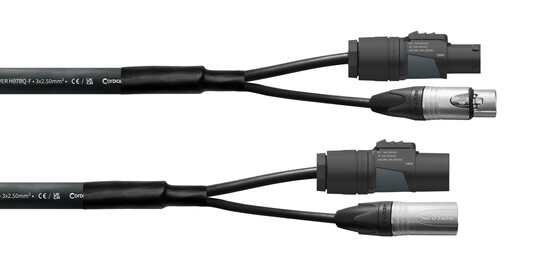

Power and DMX hybrid with powerCON® TRUE1® TOP and 5-pin XLR (3-pin assigned)

The stageworthy hybrid cable CPH DMX 1-5 PWR 1-25 TRUE 1 includes a DMX cable and a mains line.

Both in use on the stage and in the studio, the power supply is ensured by a 3x 2.50 mm² power cable and a balanced AES/EBU line. The high thickness of the power cable ensures higher performance.

The product is equipped with a NEUTRIK® powerCON® TRUE1® TOP connector, which boasts 3 essential features for professional use: it can be connected and disconnected under load, it is lockable and it is loadable up to 16 amps with 230V.

  • Split 30 cm
  • Power conductor area 3 x 2.50 mm²
  • Certified quality product according to VDE standards
  • Transparent shrink tubes for cable marking
  • Current-carrying capacity up to 16A
  • Power quality plug according IEC 60320, UL50E, UL498, VDE, ENEC standards
  • XLR quality plugs according to UL 94 V-0, IEC 61076-2-103, IEC 68-2-20 standards
icon
PowerCON TRUE 1 TOP

Attention: Safe operation until 250V~ 16A. powerCON®TRUE1®TOP is equipped with breaking capacity (CBC), i.e. it can be connected or disconnected under voltage and load.

For safety reasons, please note the technical data as well general operating and safety instructions.

icon
Caution: DMX logic!

In contrast to the audio cables, the XLR female is on the controlled unit (e.g. moving head) and the XLR male on the controlling unit (e.g. lighting console). The powerCON® connectors are therefore designed to carry current from the lighting console to the controlled unit.

Product information
cable
Jacket PVC
cable assign CPH_DMX1-5 PWR1
connector brand NEUTRIK ®
plugs
1x XLR-female 5-pole
1x powerCON®TRUE1®TOP female (NAC3FX-W-TOP)
1x XLR-male 5-pole
1x powerCON®TRUE1®TOP male (NAC3MX-W-TOP)
technical data
Technical facts
Conductor area 0.22 mm² / 2.50 mm²
AWG AWG 24 / AWG 14
Composition of conductor 7 x 0,20 mm / 50 x 0,245 mm
Material tinned copper / bare copper
Conductor resistance 85 Ohm/km (0.22mm²)
Shielding AL-foil + tinned copper braided screen (0.22 mm²)
Capacity cond.-cond. (pF/m) 40 pF/m (0.22mm²)
category Hybrid
diameter 16.00 ± 0.4 mm
weight bulk cable 350 g/m
Conductor isolation PE
Downloads
Lenghts & colours
Colour Length Matchcode item no.
1.50 CPH 1,5 DMX 1-5 PWR 1-25 TRUE 1 14006
3.00 CPH 3 DMX 1-5 PWR 1-25 TRUE 1 14007
5.00 CPH 5 DMX 1-5 PWR 1-25 TRUE 1 14008
10.00 CPH 10 DMX 1-5 PWR 1-25 TRUE 1 14009
15.00 CPH 15 DMX 1-5 PWR 1-25 TRUE 1 14010
20.00 CPH 20 DMX 1-5 PWR 1-25 TRUE 1 14011
