Powercon
select

CFCA S-TRUE 1

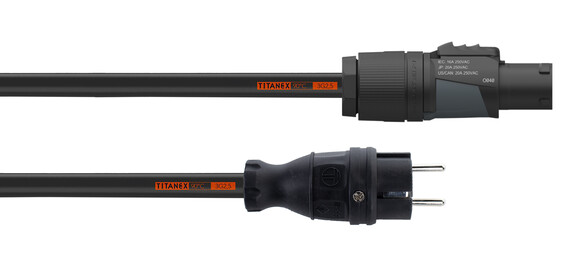

3 x 1.50 mm² powerCON® TRUE1®TOP power cable with Titanex® bulk cable and Schuko® plug

The CFCA S-TRUE 1 powerCON® cable with powerCON® TRUE 1® TOP and CEE 7/7 connectors has important features for stage use.

The NEUTRIK® powerCON® TRUE 1® TOP plug is lockable and can be loaded with up to 16 amps at 230V. Both plugs can be plugged and unplugged under voltage and load.

  • 3 x 1.50 mm² Conductor area
  • Titanex® bulk cable
  • Bulk cable oil-resistant and flame-retardant according to IEC/EN 60332-1-2
  • Certified quality product according to VDE standard
  • Transparent shrink tubes for cable marking
  • Current carrying capacity up to 16A
  • NEUTRIK® quality plugs according to IEC 60320, UL50E, UL498, VDE, ENEC standards
  • Schuko® plug according to standard CSN IEC 60884 / DIN/VDE 0620
icon
PowerCON TRUE 1 TOP

Attention: Safe operation until 250V~ 16A. powerCON®TRUE1®TOP and Schuko® CEE 7/7 are equip with breaking capacity (CBC), i.e. it can be connected or disconnected under voltage and load.

For safety reasons, please note the technical data as well general operating and safety instructions.

Product information
cable H07RN-F 3G1,5 TITANEX®
Jacket Specially crosslinked elastomer (rubber)
cable assign FCAFCB
connector brand NEUTRIK ®
plugs
1x powerCON®TRUE1®TOP female (NAC3FX-W-TOP)
1x Schuko® CEE 7/7
technical data
Conductor area 3x 1.50 mm²
AWG AWG 16
category Power
diameter 10.5 ± 1.5 mm
weight bulk cable ca. 134 g/m
Downloads
Lenghts & colours
Colour Length Matchcode item no.
1.50 CFCA 1.5 S-TRUE 1 12606
3.00 CFCA 3 S-TRUE 1 12610
5.00 CFCA 5 S-TRUE 1 12775
10.00 CFCA 10 S-TRUE 1 12608
