DMX-AES/EBU-110 Ohm

CMD 8

Multicore Digital AES EBU

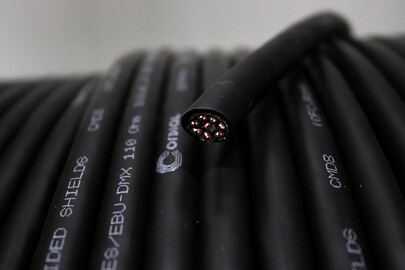

Our CMD 8 is a highly professional digital multicore cable featuring a double shield. It was designed to transmit 8 digital channels through a stage-proof cable. This bulk cable is the perfect choice for DMX light control desks or digital as well as analog audio transmissions.

Product information
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10
Material tinned copper
Conductor resistance 140 Ohm/km
Shielding tinned copper braided screen
Capacity cond.-cond. (pF/m) 45 pF / m
Specifications / Tender
Type Digital Audio Multicore
Part no. CMD 8

Mechanical data

Conductor area 0,14 mm²
Composition of conductor 18 x 0,10 mm tinned copper
Conductor isolation PE
Composition of cores 8 twisted pairs
Screen tinned copper braided screen
Overall jacket PVC
Overall diameter 12,5 ± 0,5 mm
Weight 178 g/m
Working temperature
mobile (-15 °C) - (+60 °C)
fixed (-25 °C) - (+80 °C)
min.Bending radius
mobile ~ 125 mm
fixed ~ 62 mm
Electrical data
Conductor resistance 140 Ω / km
Capacity (cond./cond.) 45 pF / m
Capacity (cond./screen) 87 pF / m
Characteristic impedance 110 Ω / m
Test Voltage 500 V eff.
Downloads
Product variants
Colour Part number
CMD 8
