EYB 12-4 C

New
12 send 4 return channel multicore and stagebox

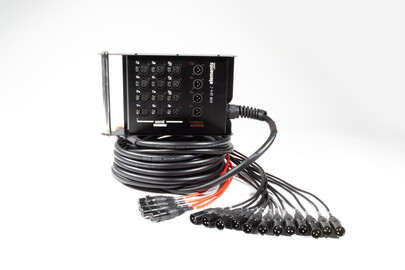

The EYB 12-4 C is a 16-channel multicore with stagebox for balanced transmission of 16 individual channels (12x send, 4x return) from the stage to the FoH or in the rehearsal room.

The unbreakable box with metal housing is particularly robust and withstands multiple loads. The conductor pairs with 0.14 mm² conductor area each are individually screened (foil shield with drain wire, 100% coverage) and thus enable unaltered signal transmission even over longer distances.

The individual channels are numbered on the stagebox and cable end for easy handling. Individual rubber boots on the XLR male connectors provide protection from dust and moisture, and all connectors are additionally secured in a bag for transport. The rugged PVC jacket reliably protects the pairs of conductors inside against bends and stresses. Additional bend protection elements at all transition points ensure a long durability. Both stagebox and connector can be opened if required.

With the elements line, Cordial offers products for beginners and particularly price-conscious users who nevertheless appreciate the usual Cordial quality.

Product information
cable elements MC 16
Jacket PVC
cable assign FM
connector brand -
plugs
12 XLR female 3-pole
4 XLR male 3-pole
12 XLR male 3-pole
4 XLR female 3-pole
technical data
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 127 Ohm/km
Shielding Foil (AL/PT) + drain wire (100% coverage)
Capacity cond.-cond. (pF/m) 52 pF/m
category Multicore
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
15.00 EYB 12-4 C 15 14911
30.00 EYB 12-4 C 30 14912
