20 channel loom

EYD 16-4 C

16 send 4 return channel multicore on a drum

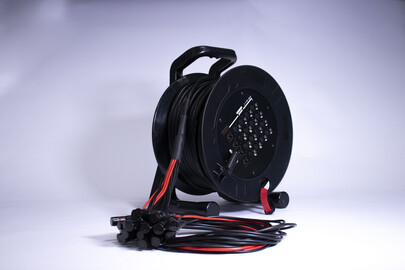

The EYD 16-4 C is a 20-channel multicore on a drum for balanced transmission of 20 individual channels (16x send, 4x return) from the stage to the FoH or in the rehearsal room.

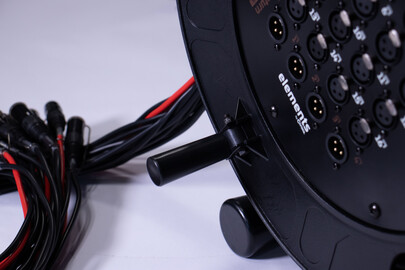

The unbreakable metal drum is particularly robust and withstands multiple loads. The conductor pairs with 0.14 mm² conductor area each are individually screened (foil shield with drain wire, 100% coverage) and thus enable unaltered signal transmission even over longer distances.

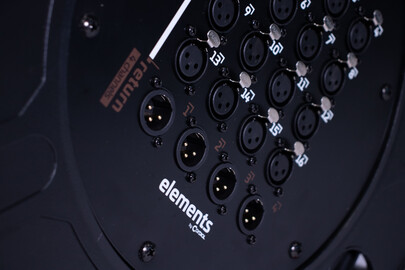

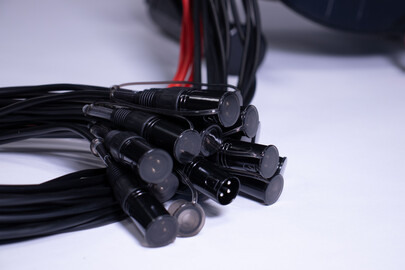

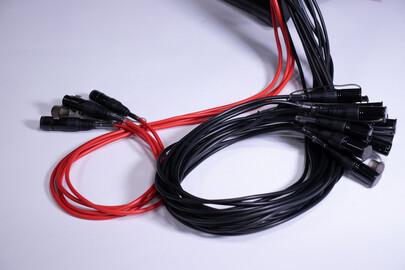

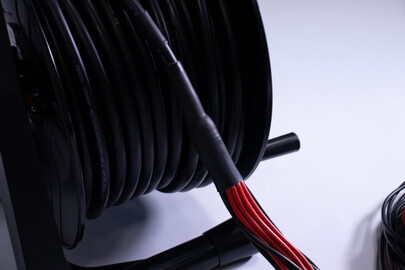

The individual channels are numbered on the stagebox drum and cable end for easy handling. Individual rubber boots on the XLR male connectors provide protection from dust and moisture, and all connectors are additionally secured in a bag for transport. The rugged PVC jacket reliably protects the pairs of conductors inside against bends and stresses. Additional bend protection elements at all transition points ensure a long durability. Both stagebox and connector can be opened if required.

With the elements line, Cordial offers products for beginners and particularly price-conscious users who nevertheless appreciate the usual Cordial quality.

Product information
cable elements MC 20
Jacket PVC
cable assign FM
connector brand -
16x XLR female 3-pole
4x XLR male 3-pole
technical data
Technical facts
Conductor area 0.14 mm²
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 127 Ohm/km
Shielding Foil (AL/PT) + drain wire (100% coverage)
Capacity cond.-cond. (pF/m) 52 pF/m
category 20 channel loom
diameter 14.5 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
30.00 EYD 16-4 C 30 14914
