Y-Adapter
ESSENTIALS

CFY WMM-LONG-SNOW

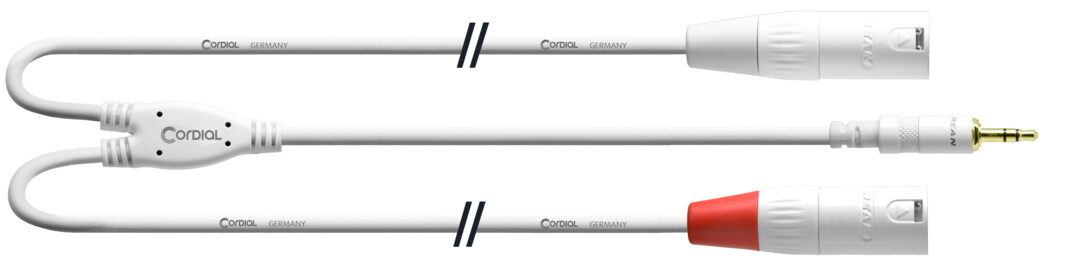

This adapter cable is useful when a signal is to be split from 1x 3.5 mm stereo jack plug to 2x male XLR and you’re looking for an alternative to the typical black color design. It’s all-white design makes it special, whether used in studios or distinctive stage events.

A red and a black marking directly on the XLR connectors facilitate right/left identification. The part of the cable in front of the split is about 15 cm long. The cross section of the cable is 2x 0.22 mm ². As usual, the high quality connectors come from Neutrik (REAN made by Neutrik).

Product information
cable intro cable 2
cable assign WMM
Brand REAN
plug
1 1/8" Plug stereo
2 XLR male 3-pole
Specifications / Tender
Type Microphone cable
Part no. intro cable 2

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 4,3 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number
CFY 1.5 WMM-LONG-SNOW
CFY 3 WMM-LONG-SNOW
CFY 6 WMM-LONG-SNOW
CFY 9 WMM-LONG-SNOW
