Balanced Connection
elements

EM VV

New

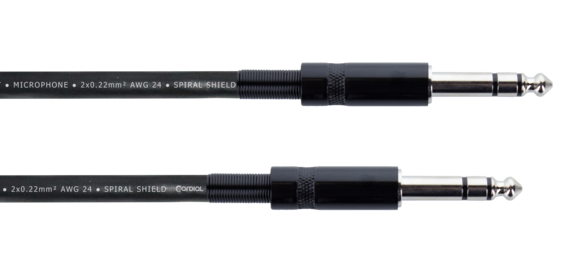

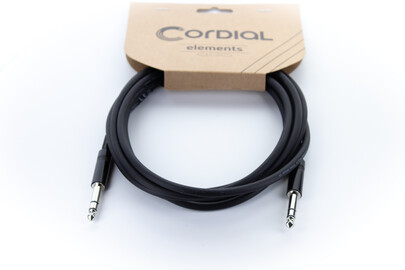

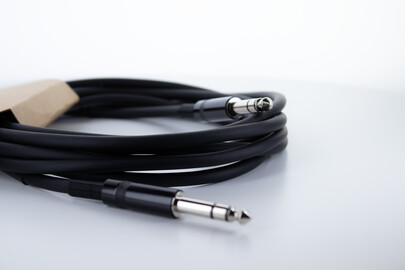

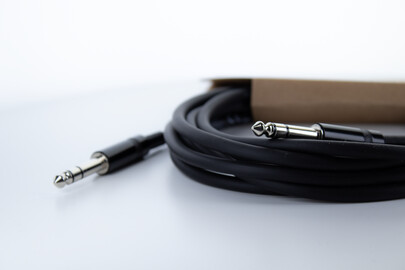

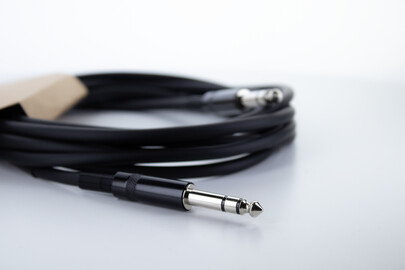

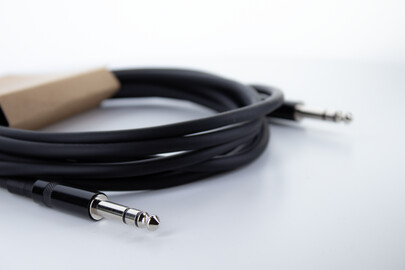

The EM VV is used to transmit balanced audio signals. The robust stereo jacks made of metal and with nickel-plated contacts combined with a hard-wearing PVC-jacket withstand even the toughest conditions. The transmission is balanced.

The conductor area of 2x 0.22 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure crystal clear and unaltered signal transmission. The single-strand construction (28 x 0.10 mm) and the robust but flexible PVC jacket mixture provide a particularly flexible stereo jack cable that can be wound easily.

Product information
cable elements MIC 1
Jacket PVC
cable assign VV
connector brand -
plugs
1x 1/4" Plug stereo
1x 1/4" Plug stereo
technical data
Technical facts
Composition of cores 2 cores twisted
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Isolation PE
Conductor area 0.22 mm²
AWG AWG 24
category Microphone
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 80 Ohm/km
diameter 6.0 mm
Capacity cond.-cond. (pF/m) 58 pF/m
Lengths & colours
Colour Length Matchcode item no.
0.50 EM 0,5 VV 14814
1.00 EM 1 VV 14815
1.50 EM 1,5 VV 14816
3.00 EM 3 VV 14817
6.00 EM 6 VV 14818
