CPH DMX 1 PWR 1-25 TRUE 1

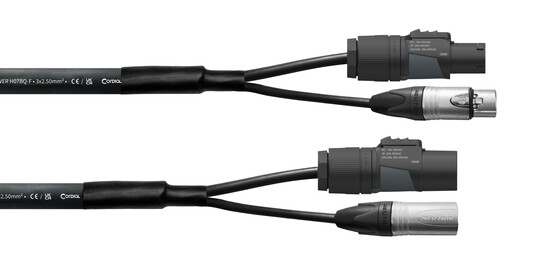

Power and DMX hybrid cable with powerCON® TRUE1® TOP and 3-pin XLR plug (daisy chain)

Our CPH DMX 1  CPH DMX 1 PWR 1-25 TRUE 1 combi cable offers a practical solution for stage applications by combining both a mains cable and a DMX cable in one cable.
Thanks to its 3x 2.50 mm² conductor cross-section and the sturdy, 3-pole NEUTRIK@ powerCON@ NAC3MX-W-TOP & NAC3FX-W-TOP connector featuring a reliable locking mechanism, the cable can handle a current carrying capacity of up to 250 V AC / 16A for the mains cable.
The DMX cable in question can cope with the transmission of digital signals in the 110 Ω AES/EBU and DMX format without any problems, even over longer distances. The H07RN-F rubber cable used for the power cable is a good choice for outdoor events. This robust rubber cable, also known as "heavy rubber cable", is flexible and reliable and meets the highest demands.

  • Split 30 cm
  • Power conductor cross-section 3 x 2.50mm²
  • Bulk power cable H07RN-F 3G2.5
  • Certified quality product according to VDE directive
  • Transparent shrink sleeves for cable marking
  • Loadable up to 250 V AC / 16A
  • powerCON®TRUE1®TOP connector, may be connected and disconnected under voltage and load.
  • Power quality plug according to IEC 60320, UL50E, UL498, VDE, ENEC standard
  • XLR quality plug according to standard UL 94 V-0, IEC 61076-2-103, IEC 68-2-20
  • Device connection cable according to IEC EN 60799:2021



Application: Hybrid cable - DMX & power cable (power daisy chain)

icon
PowerCON TRUE 1 TOP

Caution! Safe operation until 250V~ 16A. powerCON®TRUE1®TOP is equipped with breaking capacity (CBC), i.e. it can be connected or disconnected under voltage and load.

For safety reasons, please note the technical data as well general operating and safety instructions.

icon
Caution: DMX logic!

In contrast to the audio cables, the XLR female is on the controlled unit (e.g. moving head) and the XLR male on the controlling unit (e.g. lighting console). The powerCON® connectors are therefore designed to carry current from the lighting console to the controlled unit.

Product information
Bulk cable
Jacket PVC
cable assign CPH-DMX1 PWR1
connector brand NEUTRIK ®
plugs
1x powerCON®TRUE1®TOP female (NAC3FX-W-TOP-L)
x NC3MXX
1x powerCON®TRUE1®TOP male (NAC3MX-W-TOP-L)
x NC3FXX
technical data
Technical facts
Conductor area 0.22 mm² / 2.50 mm²
AWG AWG 24 / AWG 14
Composition of conductor 7 x 0.20mm / 50 x 0.245 mm
Material tinned copper / bare copper
Overall Jacket PVC
Capacity Conductor-Screen (pF/m) 80 ± 5 pF/m (0.22 mm²)
Shielding DMX AL/PET foil, tinned copper braid (85% nom. coverage) + tinned copper filler thread
Category Hybrid
Overall diameter 19,5mm +/- 0.3mm
Capacity cond.-cond. (pF/m) 40 pF/m (0.22 mm²)
Conductor resistance 85 Ohm/km (0.22 mm²)
Characteristic impedance 110 Ohm (0.22 mm²)
weight bulk cable 428 g/m
Nominal voltage 250V AC
Rated current 16 A
Protection class k.A.
Additional description
Downloads
Lengths & colours
Colour Length Matchcode item no.
1.50 CPH 1,5 DMX 1 PWR 1-25 TRUE 1 13999
3.00 CPH 3 DMX 1 PWR 1-25 TRUE 1 14000
5.00 CPH 5 DMX 1 PWR 1-25 TRUE 1 14001
10.00 CPH 10 DMX 1 PWR 1-25 TRUE 1 14002
15.00 CPH 15 DMX 1 PWR 1-25 TRUE 1 14003
20.00 CPH 20 DMX 1 PWR 1-25 TRUE 1 14004
