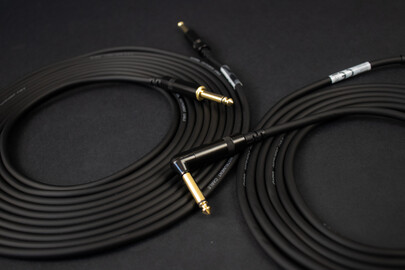

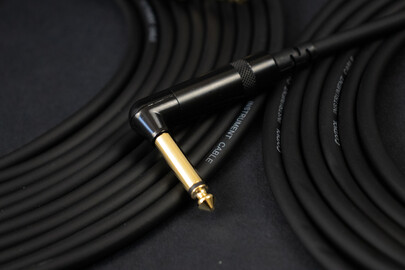

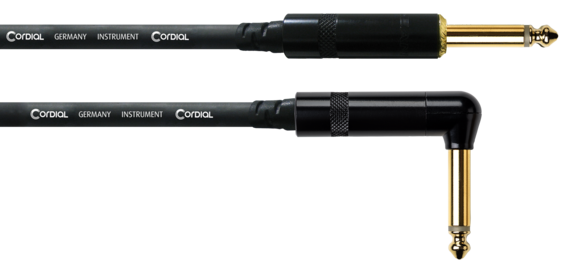

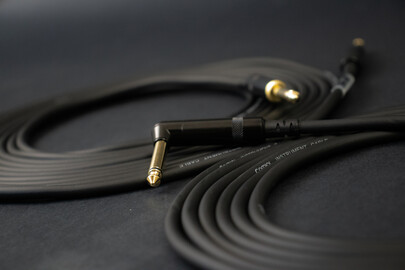

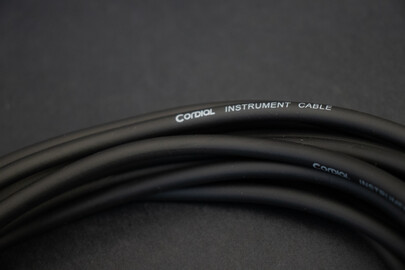

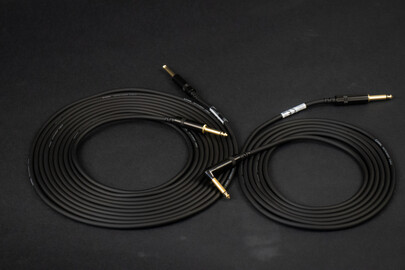

Our CCI PR features hand soldered, gold-plated REAN connectors with a right-angle plug on one end and a pointy and easy to open kink protection. Combined with tried-and-tested CORDIAL bulk cables it becomes a reliable entry-level multi-purpose tool.
Instrument
essentials
CCI PR
Product information
| cable | essentials cable 5 | |
| Jacket | PVC | |
| cable assign | PR | |
| connector brand | REAN ® | |
| plugs |
1x 1/4" Plug mono
1x 1/4" Plug right angle mono
|
technical data
Technical facts
| Conductor area | 0.22 mm² |
| AWG | AWG 24 |
| Composition of conductor | 7 x 0.20 mm |
| Conductor resistance | 80 Ohm/km |
| Shielding | spiral shield |
| Capacity cond.-cond. (pF/m) | 140 pF/m |
| category | Instrument |
| diameter | 5.9 ± 0.2 mm |
Lenghts & colours
| Colour | Length | Matchcode | item no. |
| 1.50 | CCI 1.5 PR | 14598 | |
| 3.00 | CCI 3 PR | 10405 | |
| 6.00 | CCI 6 PR | 10407 | |
| 9.00 | CCI 9 PR | 10409 |
