To connect amps and passive speakers, CORDIAL offers you its CPL LL cable, a highly flexible speaker cable with 2 pins assigned.
Attention!
Safe operation until 48 Volt max.
Speaker
select

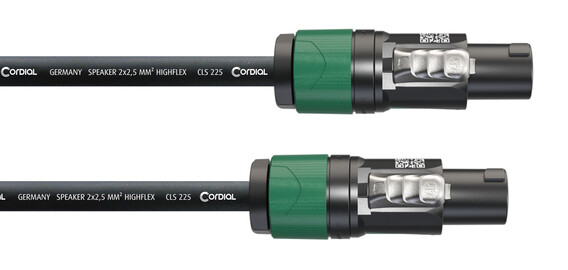

CPL LL
Product information
| cable | ||
| Jacket | PVC | |
| cable assign | LL | |
| connector brand | NEUTRIK ® | |
| plugs |
1x Speakon 4-pole
1x Speakon 4-pole
|
technical data

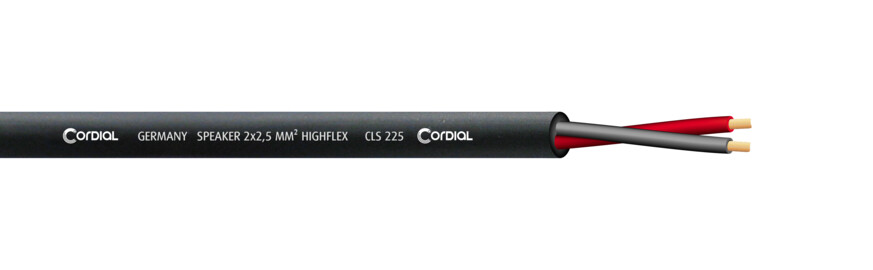

Technical facts
| Conductor area | 2.50 mm² |
| AWG | AWG 14 |
| Composition of conductor | 140 x 0.15 mm |
| Material | bare copper |
| Conductor resistance | 8 Ohm/km |
| category | Speaker |
| diameter | 7.8 mm |
| weight bulk cable | 105 g/m |
| Conductor isolation | PVC |
Lenghts & colours
| Colour | Length | Matchcode | item no. |
| 5.00 | CPL 5 LL | 10999 | |
| 10.00 | CPL 10 LL | 10982 | |
| 15.00 | CPL 15 LL | 10989 | |
| 20.00 | CPL 20 LL | 10993 |
