Y-Adapter
ESSENTIALS

CFY VPP-LONG

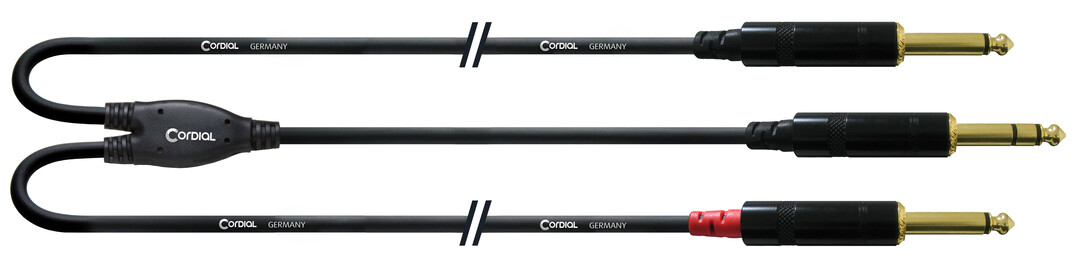

As the name suggests, the 1x 6.3 mm stereo jack plug to 2x 6.3 mm mono jack Y-splitter CFY VPP-LONG is the longer version of the CFY VPP. It is used when, for example, you need to connect two amps that are placed quite far apart from each other.

The part of the cable before the split is about 15 cm long. The hand soldered plugs with gold plated contacts (corrosion protection) come from Neutrik® (REAN made by Neutrik). The wire cross-section of 0.22 mm² ensures a great signal transmission and, simultaneously, a great and user-friendly flexibility.

Product information
cable intro cable 1

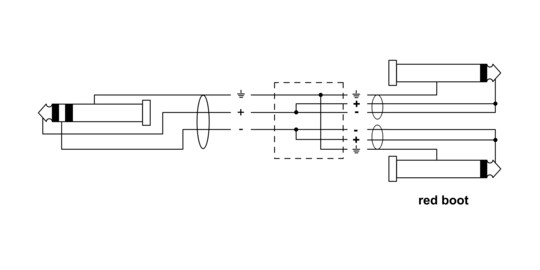

cable assign VPP
Brand REAN
plug
1 1/4" Plug stereo
2 1/4" Plug mono
Specifications / Tender
Type Microphone cable
Part no. intro cable 1

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 5,9 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number
CFY 1.5 VPP-LONG
CFY 3 VPP-LONG
