Bal. Plug Connection
ESSENTIALS

CIM VV

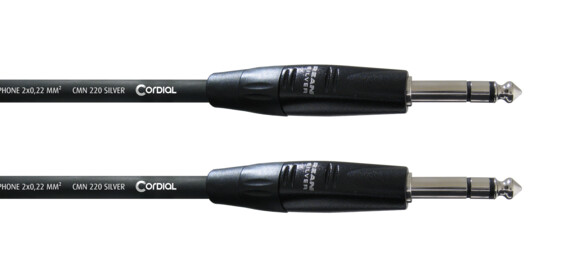

Balanced stereo jack cable

The CIM VV stereo cable is used for balanced transmission of audio signals, for example from an effects unit to stereo inputs of audio interfaces, mixers or audio workstations or from there to stereo inputs of monitors.

NEUTRIK® has developed the REAN SILVER® 6.3 mm stereo jack plugs in a discreet black color exclusively for CORDIAL®. Combined with our Essentials Cable 1 bulk cable, this audio cable offers a conductor area of 0.22 mm² (AWG 24) and a spiral shielding of bare copper wires. It is especially flexible due to the single strand construction (28 x 0.10 mm) and can therefore be easily wound.

The CIM VV is in many points the cheaper alternative to our CPM VV, but the capacity (conductor/conductor) are higher, so that attenuations in the signal are possible especially over longer distances.

For unbalanced transmission from guitars or other instruments to a mono input, we recommend the CII PP.

Product information
cable essentials cable 1
Jacket PVC

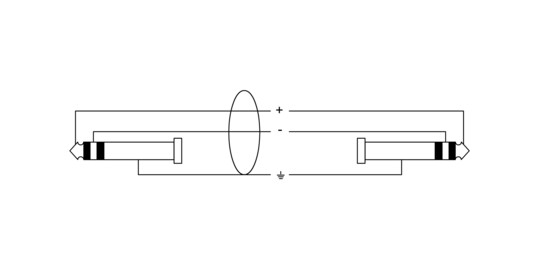

cable assign VV
connector brand REAN SILVER ®
plugs
1 1/4" Plug stereo
1 1/4" Plug stereo
Specifications
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
Product variants
Colour Length Matchcode item no.
0.30 CIM 0.3 VV 10684
0.60 CIM 0.6 VV 10688
0.90 CIM 0.9 VV 10689
1.50 CIM 1.5 VV 10694
3.00 CIM 3 VV 10702
6.00 CIM 6 VV 10708
9.00 CIM 9 VV 10714
