CIM MP

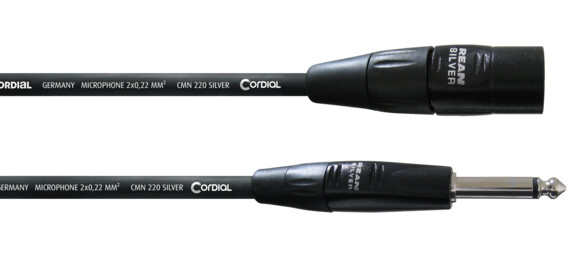

Unbalanced XLR male to mono jack cable

The CIM MP mono audop cable is usually used to transmit unbalanced signals like guitar or bass signals to the XLR input of your mixer. Pin 1 and 3 of the XLR plug are soldered together. Its REAN SILVER® by NEUTRIK® XLR male and 6.3 mm male plugs are designed in discreet black. Based on our Essentials Cable 1 bulk cable, it offers a conductor area of 0.22 mm² (AWG 24) and a spiral shield made of bare copper wires. The composition of conductors (28 x 0.10 mm) makes it very flexible and easy to be reeled.

The CIM MP is in many points the cheaper alternative to the CPM MP, but it got a much higher conductor/conductor capacity, so that attenuations in the signal are possible, especially over longer distances.

Product information
cable essentials cable 1
Jacket PVC
cable assign MP
connector brand REAN SILVER ®
plugs
1x XLR male 3-pole
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Unbalanced Connection
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
Lenghts & colours
Colour Length Matchcode item no.
5.00 CIM 5 MP 10705
7.50 CIM 7.5 MP 10711
10.00 CIM 10 MP 10697
