CFCA S 25

New
High-performance Titanex® power cable with 2.50 mm² conductor area

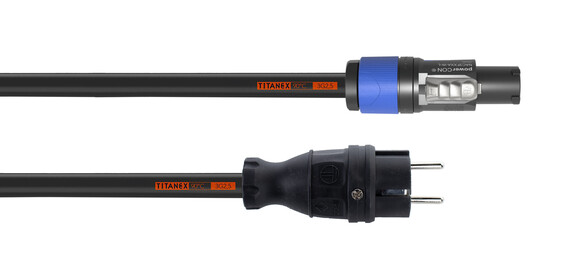

The CFCA S 25 is the even more powerful version of the CFCA S. With its 3x 2.50 mm² conductor area and the robust, three-pole NEUTRIK® powerCON® NAC3FCA-1 plug with locking mechanism and a shockproof plug (Schuko), a current-carrying capacity of up to 20 A is achieved. In contrast to conventional powerCON® plugs, the revised plugs can be plugged under load (IEC 61984) in combination with the built-in versions NAC3MPXXA and NAC3MPXXA-WOT.

The flexible and reliable TITANEX® bulk cable with insulation and outer sheath made of elastomer (polychloroprene) are oil-resistant and flame-retardant according to IEC/EN 60332-1-2 standard. Transparent heat-shrinkable sleeves at both ends allow individual marking.

  • 3x 2.50 mm² conductor area
  • Oil resistant and flame retardant IEC/EN 60332-1-2 standard
  • Heat Shrink Tubing
  • UL, C-UL recognized components, VDE certified and SEV approved
  • Current carrying capacity up to 20 A



Attention: Do not plug under load while using conventional sockets. Can be plugged under load (IEC 61984) only using NEUTRIK® NAC3MPXXA or NAC3MPXXA-WOT sockets.

Product information
cable H07RN-F 3G2,5 TITANEX
Jacket Polychloropren
cable assign FCAFCB
connector brand NEUTRIK ®
plugs
1 powerCON
1 CEE 7/7
technical data
Conductor area 2.5 mm²
AWG AWG 13
category Power
diameter 14.0 ± 0.2 mm
weight 195 g/m
Lenghts & colours
Colour Length Matchcode item no.
5.00 CFCA 5 S 25 14957
10.00 CFCA 10 S 25 14958
