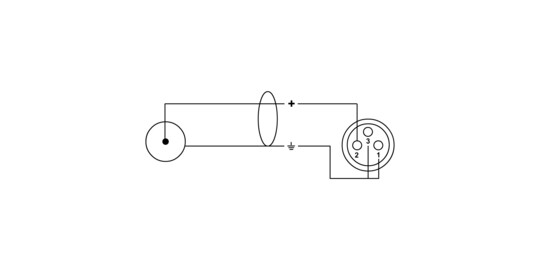

Unbal. Connection
ESSENTIALS

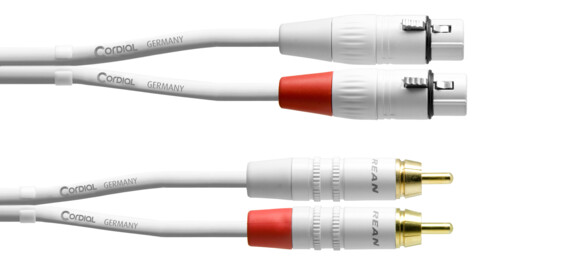

CFU FC-SNOW
Product information
| cable | intro cable 3 |
| cable assign | FC |
| Brand | REAN |
| plug |
2 XLR female 3-pole
2 Cinch-RCA
|
Specifications / Tender
| Type | Twin microphone cable |
| Part no. | intro cable 3 |
Mechanical data
| Conductor area | 0,22 mm² |
| AWG | AWG 24 |
| Composition of conductor | 28 x 0,10 mm bare copper |
| Conductor isolation | PE |
| Composition of cores | 2 twisted pairs |
| Screen | spiral shield |
| Overall jacket | PVC |
| Overall diameter | 4,3 ± 0,2 mm |
| Weight | |
| Working temperature | |
| mobile | |
| fixed | |
| min.Bending radius | |
| mobile | |
| fixed | |
| Electrical data | |
| Conductor resistance | 80 Ω / km |
| Capacity (cond./cond.) | 80 pF / m |
| Capacity (cond./screen) | |
| Test Voltage |
Product variants
| Colour | Part number |
| CFU 1.5 FC-SNOW | |
| CFU 3 FC-SNOW |
