Stagebox
elements

EYB 6-0 C

New

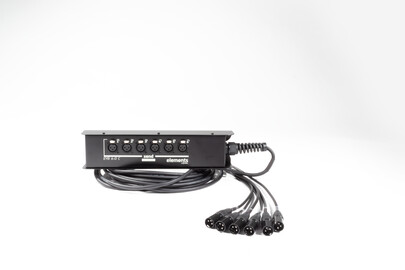

6-channel multicore and stagebox

The EYB 6-0 C is a 6-channel multicore with stagebox for balanced transmission of 6 individual channels from the stage to the FoH or in the rehearsal room.

The unbreakable box with metal housing is particularly robust and withstands multiple loads. The conductor pairs with 0.14 mm² conductor area each are individually screened (foil shield with drain wire, 100% coverage) and thus enable unaltered signal transmission even over longer distances.

The individual channels are numbered on the stagebox and cable end for easy handling. Individual rubber boots on the XLR male connectors provide protection from dust and moisture, and all connectors are additionally secured in a bag for transport. The rugged PVC jacket reliably protects the pairs of conductors inside against bends and stresses. Additional bend protection elements at all transition points ensure a long durability. Both stagebox and connector can be opened if required.

With the elements line, Cordial offers products for beginners and particularly price-conscious users who nevertheless appreciate the usual Cordial quality.

Product information
cable elements MC 6
Jacket PVC
cable assign FM
connector brand -
plugs
6 XLR female 3-pole
6 XLR male 3-pole
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 127 Ohm/km
Shielding Foil (AL/PT) + drain wire (100% coverage)
Capacity cond.-cond. (pF/m) 52 pF/m
category Multicore
diameter 8.0 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
10.00 EYB 6-0 C 10 14905
