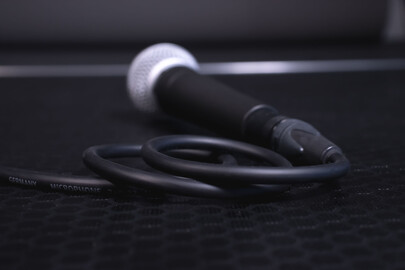

CPM FM-FLEX

The flexible microphone cable

Based on the highly flexible bulk cable CMK 222 FLEX, the CPM FM-FLEX mic cable guarantees flexibility and durability even under demanding stage and studio conditions. Due to the particularly soft jacket mix, a low bending radius and high flexibility can be achieved.

We offer this bulk cable equipped with NEUTRIK® XLR female and male connectors in a great variety of lengths (1 up to 20m). It can be used in so many ways – as patch cable as well as for long-distance transmissions; always flexible, no twisting or breaking.

Product information
cable
Jacket PVC
cable assign FM
connector brand NEUTRIK ®
plugs
1x XLR female 3-pole
1x XLR male 3-pole
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 85 Ohm/km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 55 pF/m
category Microphone
diameter 6.4 mm
weight bulk cable 53 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.00 CPM 1 FM-FLEX 11010
1.50 CPM 1.5 FM-FLEX 11013
2.50 CPM 2.5 FM-FLEX 11029
3.00 CPM 3 FM-FLEX 11039
5.00 CPM 5 FM-FLEX 11047
6.00 CPM 6 FM-FLEX 11056
7.50 CPM 7.5 FM-FLEX 11059
10.00 CPM 10 FM-FLEX 11019
15.00 CPM 15 FM-FLEX 11027
20.00 CPM 20 FM-FLEX 11036
