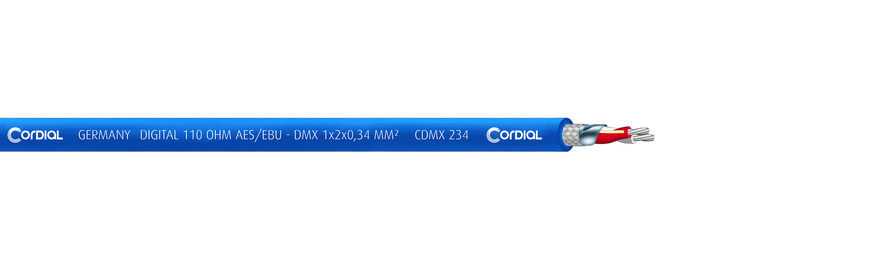

An aluminum foil shield and a tinned copper braided screen encase two conductors with 7 tinned copper strands each. Each conductor cross-section is 0.34mm² thick. The double shielding protects the cable excellently against electrical interferences. The relatively massive data cable is highly resilient against mechanical strain. Whenever you’re looking for reliable data transmissions (110 Ω AES/EBU and DMX) for professional event applications, you’ll surely appreciate this roadworthy CORDIAL product. The CDMX 234 allows a 3-pin configuration.
Light DMX
CDMX 234
Digital Control Cable
Product information
| Jacket | PVC |
technical data
Technical facts
| Conductor area | 0.34 mm² |
| Composition of cores | 1 twisted pair |
| AWG | AWG 22 |
| Shielding | tinned copper braided screen |
| Composition of conductor | 7 x 0.25 mm |
| Pair screen | aluminium laminated foil |
| Material | tinned copper |
| Conductor isolation | PE |
| Conductor resistance | 56 Ohm/km |
| Capacity cond.-cond. (pF/m) | 42 pF/m |
| Category | DMX-AES/EBU-110 Ohm |
| weight bulk cable | 50 g/m |
| diameter | 6.0 mm |
| test voltage | 1000 V eff. |
Lengths & colours
| Colour | Matchcode | item no. |
| CDMX 234 BLACK 100 | 10432 | |
| CDMX 234 BLACK 500 | 10433 | |
| CDMX 234 BLUE 100 | 12535 | |
| CDMX 234 BLUE 500 | 10434 |
