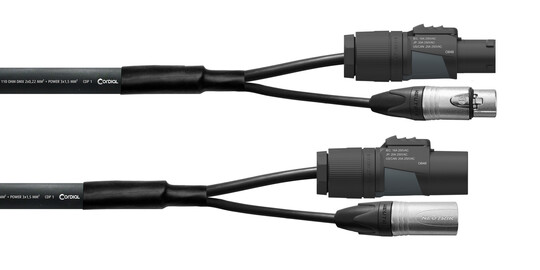

The stageworthy hybrid solution CPH DMX 1 PWR 1 TRUE1 combines a mains line and a DMX cable. The 3 x 1.5mm2 power cable and a balanced AES/EBU line ensure an optimal power supply for stage and studio use.
The cable features a NEUTRIK PowerCon TRUE 1 connector which boasts 3 important characteristics for professional use: it is lockable, loadable up to 16 amps with 230V and can be connected and disconnected under load.
The split of the cable is 30 cm.
| cable | CDP 1 |
| cable assign | CPH_DMX1 PWR1 |
| Brand | REAN |
| plug |
1 XLR female 3-pole
1 PowerCON TRUE1 TOP female
1 XLR male 3-pole
1 PowerCON TRUE1 TOP female
|
| Type | DMX / Power Hybrid cable |
| Part no. | CDP 1 |
Mechanical data
| Conductor area | 0,22 mm² / AWG 24 // 1,5 mm² / AWG 16 |
| Composition of conductor | 7 x 0,20 mm tinned copper // 30 x 0,25 bare copper |
| Conductor isolation | PE//PVC |
| Composition of cores | 1 twisted pair + 3x 1,5 mm² twisted |
| Overall Screen | tinned copper braided screen |
| Overall jacket | PVC |
| Overall diameter | 15,1 ± 0,6 mm |
| Weight | 266 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 157 mm |
| fixed | ~ 78 mm |
| Electrical data | |
| Conductor resistance | 85 Ω / km (0,22²) |
| Capacity (cond./cond.) | 60 pF / m (0,22²) |
| Capacity (cond./screen) | 120 pF / m (0,22²) |
| Characteristic impedance | 110 Ω |
| Test voltage | 1200 V eff. |
| Colour | Part number |
| CPH 1.5 DMX 1 PWR 1 TRUE 1 | |
| CPH 3 DMX 1 PWR 1 TRUE 1 | |
| CPH 5 DMX 1 PWR 1 TRUE 1 | |
| CPH 10 DMX 1 PWR 1 TRUE 1 |
