Microphone
essentials

CCM MP

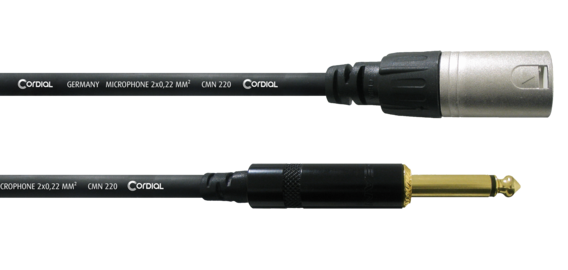

6.3 mm mono plug to XLR

The CCM MP is used for unbalanced transmission of audio signals, for example from a guitar to an XLR input of an audio workstation or mixer, when there's only an XLR input available. Pin 1 and 3 of the XLR plug are soldered together. With a conductor area of 2x 0.22 mm² (both conductors are soldered together) and a spiral shielding of bare CU wires (90% coverage), it ensures undistorted signals in daily use. The moulded-on bend protection sleeve (plug openable) protects the sensitive areas from cable breakage and ensures solid mating cycles.

The hand-soldered REAN® by NEUTRIK® connectors offer the usual NEUTRIK quality at lower prices. The conductor composition of 28 individual strands (0.10 mm diameter each) makes it particularly flexible and easy to wind.

Product information
cable essentials cable 1
Jacket PVC
cable assign MP
connector brand REAN ®
plugs
1 XLR male 3-pole
1 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
Lenghts & colours
Colour Length Matchcode item no.
5.00 CCM 5 MP 10420
7.50 CCM 7.5 MP 10423
10.00 CCM 10 MP 10415
