Microphone
select

CPM FMR

New

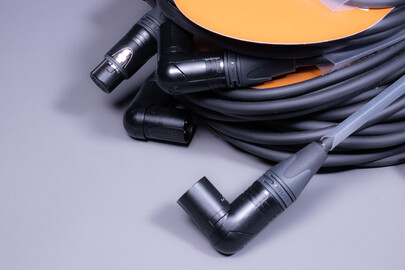

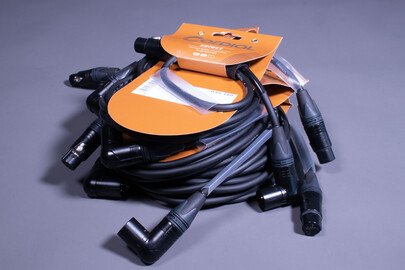

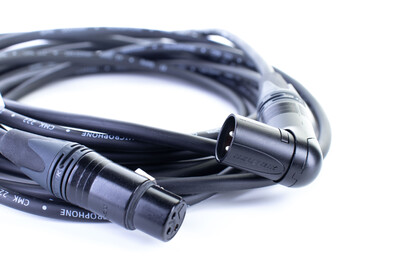

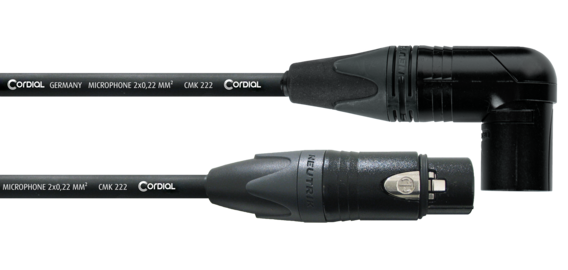

Microphone cable with right-angled XLR male

Especially in racks or in mixing consoles, the CPM FMR with the angled NEUTRIK® XLR male plug enables space-saving cabling in tight places - without kinking the cable or annoying cable breakage. But also in the home studio, the 90° connector saves space at crucial points: When connecting studio monitors that stand directly to the wall or audio interfaces or small mixers on the studio table, a clean and tidy signal routing can be made possible in the smallest space without unnecessary cable loops.

The CMK 222 bulk cable used is known for its robust sheathing, which provides excellent protection against adverse external influences. The conductor area of 0.22 mm² ensures very good signal transmission and thus dynamic sound without significant losses. Transparent shrink tubes simplify individual labelling.

A neat solution for technicians and musicians on stage and in the studio that saves space exactly where it is rare.

Also available as CPM FRM with one angled XLR female or as CPM FRMR with two angled XLRs.

Product information
cable CMK 222
Jacket PVC
cable assign FM
connector brand NEUTRIK ®
plugs
1 XLR male 3-pole
1 XLR female 3-pole
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 85 Ohm/km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 55 pF/m
category Microphone
diameter 6.4 mm
weight 53 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
0.50 CPM 0.5 FMR 15127
1.00 CPM 1 FMR 15129
2.50 CPM 2.5 FMR 15130
5.00 CPM 5 FMR 15131
10.00 CPM 10 FMR 15132
Our classic in various versions

The microphone cable: CPM

Whether for the stage, studio or rehearsal room: reliable microphone cables with good shielding and a robust jacket are an important part of daily work. Cordial has therefore created a family of microphone cables that meets those requirements. Our basis: The bulk cable CMK 222 with a composition of conductors of 28 x 0.10 mm oxigen-free copper (OFC) stains and a conductor area of 0.22 mm² each, protected by a pair shield (bare copper spiral shield, coverage approx. 95%) and sheathed by a robust but flexible PVC jacket.
All CPM cables are easy to be reeled, lie neatly without forming loops and withstand typical stage loads. The perfect solution for live performers and stage equipment rental companies.
