Y-Adapter
ESSENTIALS

CFY WMM-SNOW

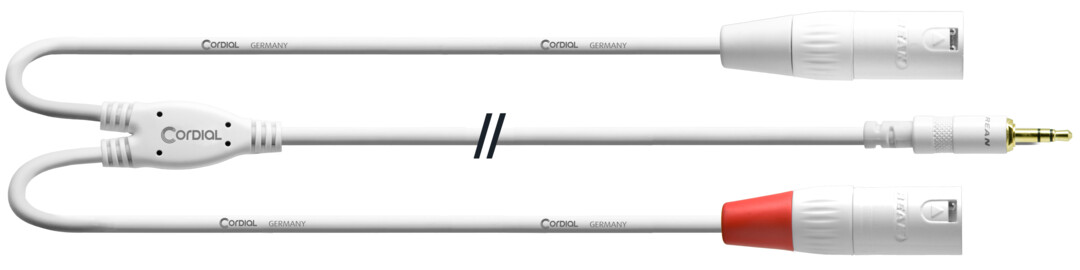

The CFY WMM-SNOW Y-Adapter cable has the same technical characteristics as the CFY WMM, but comes in an all-white design.

Here, too, the plug arrangement is 1x 3.5 mm stereo jack to 2x male XLR. The split at the two cable ends is approx. 15 cm long and the two XLR connectors feature a red and a white marking. The white metal connectors (REAN made by Neutrik®) are hand soldered. The cable has a cross-section of 2x 0.22mm².

Product information
cable essentials cable 2
Jacket PVC
cable assign WMM
connector brand REAN ®
plugs
1 1/8" Plug stereo
2 XLR male 3-pole
Specifications
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Conductor resistance 80 Ohm/km
Shielding spiral shield
Capacity cond.-cond. (pF/m) 80 pF/m
category Microphone
diameter 4.3 mm | 1.69 in
Product variants
Colour Part number Length
CFY 1.8 WMM-SNOW 1.80
CFY 3 WMM-SNOW 3.00
