Loudspeaker

CLS 825

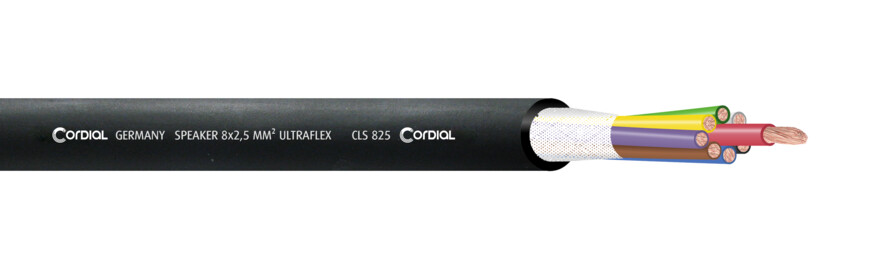

Loudspeaker Cable Multicore ultraflex

The CLS 825 multicore speaker cable features 8 conductors composed of 2.5 mm2 high-purity, low-oxygen copper strands. This design results in a secure and complete signal transmission. A reliable solution for trouble-free stage applications.

Product information
Conductor area 2.50 mm²
AWG AWG 14
Composition of conductor 322 x 0.10
Material bare copper
Conductor resistance 8 Ohm/km
Shielding no screen
Capacity cond.-cond. (pF/m)
Specifications / Tender
Technical facts
Type loudspeaker cable multicore
Part no. CLS 825

Mechanical data

Conductor area 2,5 mm²
Composition of conductor 322 x 0,10 mm bare copper
Conductor isolation PVC
Composition of cores 8 cores
Screen no screen
Overall jacket PVC
Overall diameter 12,5 ± 0,3 mm
Weight 310 g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 128 mm
fixed ~ 64 mm
Electrical data
Conductor resistance 8 Ω / km
Test Voltage 2000 V eff.
Downloads
Product variants
Colour Part number
CLS 825 BLACK 100
CLS 825 BLACK 500
