Digital Interface
essentials

CFD DVT

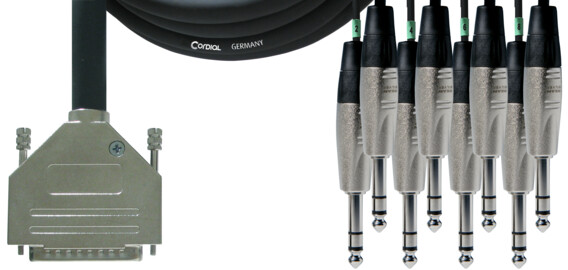

The digital interface CFD DVT is used for the balanced signal transmission from D-Sub to plug. Its pin configuration conforms with the analog Tascam DSUB  25 specifications (DA 88). The D-Sub 25-pin male connectors features a metal housing, the 8x 6.3mm plugs (balanced) are encased in nickel-plated metal housings.

Our corresponding bulk cable CMD 8 features spiral wound tinned copper pair screens, an additional tinned overall shield and allows the perfect transmission of analog and DMX signals.

Product information
cable
Jacket PVC

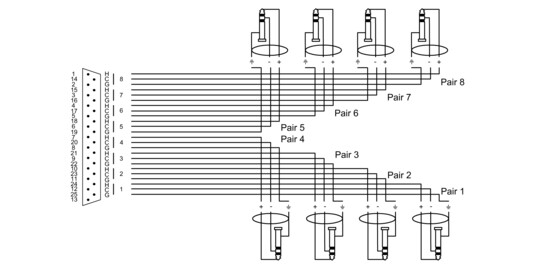

cable assign DVT
connector brand REAN ®
plugs
1x D-Sub
8x 1/4" Plug stereo
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material tinned copper
Conductor resistance 140 Ω/km
Shielding tinned copper braided screen ( >80% covering)
Capacity cond.-cond. (pF/m) 45 pF / m
category DMX-AES/EBU-110 Ohm
diameter 12.5 ± 0.5 mm
weight bulk cable 178 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 CFD 1.5 DVT 10477
3.00 CFD 3 DVT 10488
5.00 CFD 5 DVT 10495
