Bal. Plug Connection
essentials

CFM VK

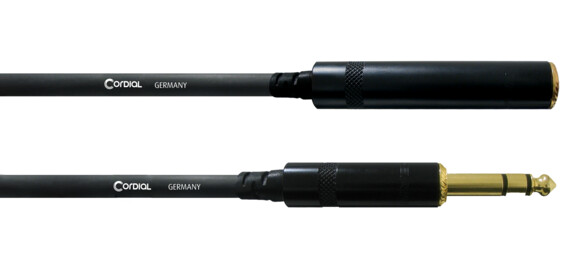

6.35 mm headphone extension cable

The CFM VK is a balanced extension cable for 6.35 mm stereo jacks for e.g. headphones. The two hand-soldered REAN® by NEUTRIK® connectors are protected from damage by a moulded-on anti-kink sleeve, the contacts are gold-plated and thus protected from corrosion.

The used bulk cable with a conductor area of 0.22 mm² consisting of 28 x 0.10 mm strands of high-purity copper ensures undistorted signal transmission. A spiral shielding protects against disturbing external influences and prevents noise from power supply units or power lines, for example.

Also available in white as CFM VK-SNOW.

Product information
cable essentials cable 1
Jacket PVC
cable assign VK
connector brand REAN ®
plugs
1 1/4" Plug stereo
1 1/4" Socket stereo
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
category Microphone
diameter 5.9 ± 0.2 mm
Conductor isolation LDPE
Lenghts & colours
Colour Length Matchcode item no.
3.00 CFM 3 VK 10559
5.00 CFM 5 VK 10565
7.50 CFM 7.5 VK 10572
10.00 CFM 10 VK 10551
