CPM FW-BAL

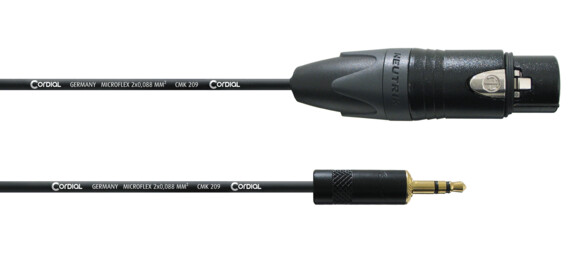

The very versatile CPM FW-BAL patch cable - XLR female/mini stereo plug (balanced) – is mainly used for studio signal flows.

It is also very useful for camera work or as an adapter cable connection between battery pack and mic.

Product information
cable CMK 209
Jacket PVC

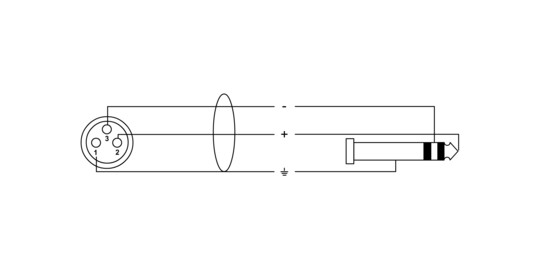

cable assign FW BAL
connector brand NEUTRIK ®
plugs
1 XLR female 3-pole
1 1/8" Plug stereo
Specifications
Technical facts
Conductor area 0.088 mm²
AWG AWG 28
Composition of conductor 7 x 0.127 mm
Material bare copper
Conductor resistance < 217 Ω / km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 54 pF / m ± 8 %
category Microphone
diameter 3 mm
weight 13 g/m
Conductor isolation PP
Product variants
Colour Part number Length
CPM 1.5 FW-BAL 1.50
CPM 3 FW-BAL 3.00
Our classic in various versions

The microphone cable: CPM

Whether for the stage, studio or rehearsal room: reliable microphone cables with good shielding and a robust jacket are an important part of daily work. Cordial has therefore created a family of microphone cables that meets those requirements. Our basis: The bulk cable CMK 222 with a composition of conductors of 28 x 0.10 mm oxigen-free copper (OFC) stains and a conductor area of 0.22 mm² each, protected by a pair shield (bare copper spiral shield, coverage approx. 95%) and sheathed by a robust but flexible PVC jacket.
All CPM cables are easy to be reeled, lie neatly without forming loops and withstand typical stage loads. The perfect solution for live performers and stage equipment rental companies.
