CPI FP-RT 3

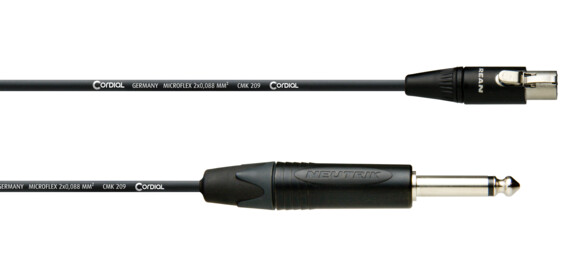

CORDIAL offers a reasonably priced, high quality alternative to the expensive original accessories offered by manufacturers of pocket transmitters - the 3-pin mini XLR to CPI 1 FP-PRT 3 plug instrument cable. Its features solid NEUTRIK NP2 plugs and REAN Mini-XLR connectors. Due to the very thin 0.088mm2 cross-section, CORDIAL’s Microflex CMK 209 is ideal for the intended purpose (suited for products by manufacturers Shure, AT, AKG, LD-Systems (3-pin), Beyer,  T.Bone).

Product information
cable
Jacket PVC
cable assign FP
connector brand NEUTRIK ® / REAN ®
plugs
1x XLR female tiny 3-pole
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.088 mm²
AWG AWG 28
Composition of conductor 7 x 0.127 mm
Material bare copper
Conductor resistance < 217 Ω / km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 54 pF / m ± 8 %
category Microphone
diameter 3 mm
weight bulk cable 13 g/m
Conductor isolation PP
Lenghts & colours
Colour Length Matchcode item no.
1.00 CPI 1 FP-RT 3 10953
