Digital Interface
elements

EFD DFT

Outlet

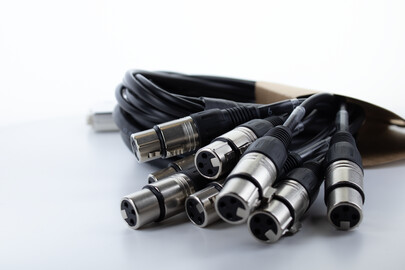

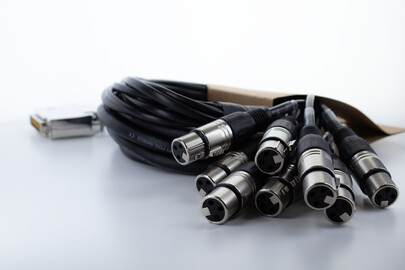

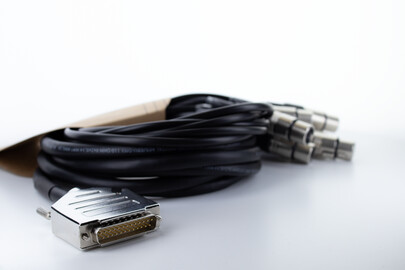

The EFD DFT is used to connect 8 XLR-channels to a digital interface (Tascam). The transmission is balanced. The robust metal D-Sub connector and the eight XLR female connectors with channel numbering and screwed-on bend protection together with a durable PVC jacket ensure long durability.

The conductor area of 8x2x0.14 mm² and a shielding of AL/PT foil (foil shield, 100% coverage) ensure crystal clear and undistorted signal transmission. The single strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound provide a digital interface cable that is easy to wrap.

Also available with male XLR as CFD DMT or with stereo jack as CFD DVT.

Product information
cable elements MD
Jacket PVC
cable assign DFT
connector brand -
plugs
1 D-Sub
8 XLR female 3-pole
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 127 Ohm/km
Shielding foil (AL/PT, 100% coverage) + drain wire
Capacity cond.-cond. (pF/m) 52 pF/m
category Digital Interface
diameter 9.5 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 EFD 1,5 DFT 14806
3.00 EFD 3 DFT 14807
5.00 EFD 5 DFT 14808
