Microphone

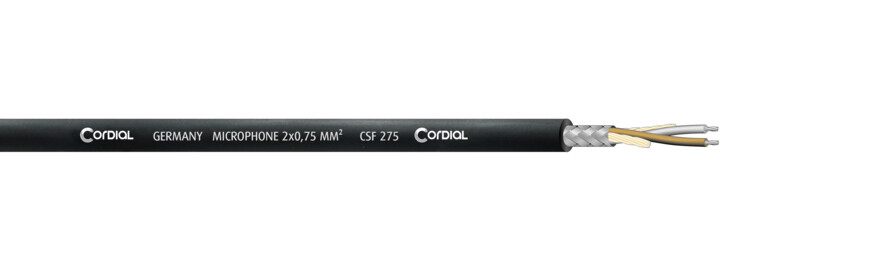

CSF 275

High end installation cable for recording studios

CORDIAL’s bulk cable CSF 275 is often used for diverse installations and recording studio upgrading. Especially in the case of longer cable runs (e.g. in cable ducts) between recording room and desk, large conductor cross-sections are enormously important for undistorted signal transmissions. The CSF 275 offers 2x 0.75mm² (AWG 19) conductor cross sections ensuring extremely low signal attenuation and transmissions without the loss of high frequencies. 64 tinned copper strands with a diameter of 0.10mm ensure a high flexibility, even in cable ducts. The bending radius for fixed installations is only ~28 mm. A braid of tinned copper wires shields this cable from external interferences.

Also available with 2x 0.50mm² (CSF 250) or as twin cable with 4x 0.50mm² (CSF 450) conductor cross sections.

Product information
Jacket PVC
technical data
Technical facts
Conductor area 0.75 mm²
Composition of cores 2 cores twinned
AWG AWG 19
Shielding tinned copper braided screen
Composition of conductor 42 x 0.15 mm
Material tinned copper
Conductor isolation PVC
Conductor resistance 25.5 Ohm/km
Capacity cond.-cond. (pF/m) 218 pF/m
Category Microphone
weight bulk cable 47 g/m
diameter 5.5 mm
test voltage 750 V eff.
Lengths & colours
Colour Matchcode item no.
CSF 275 BLACK 100 11206
