Instrument
peak

BLACKLIGHT-EDITION PP-SILENT

Special

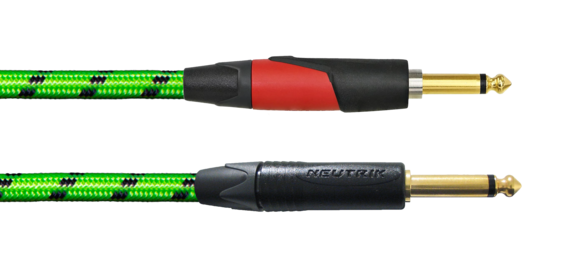

UV-reactive instrument cable with silentPLUG®

blacklightPsychadelic colourful glowing figures in complete darkness. Rhythmic dance movements to the beat, a guitarist on stage who makes the strings and hearts quiver.
The BLACKLIGHT EDITION from Cordial combines the usual outstanding inner values with a UV-reactive textile jacket that is particularly eye-catching in black light. Individual threads of UV-reactive material have been woven into the textile jacket for this purpose. In clubs or on stages, these fibres make the cables glow green or orange under black light. This makes for real eye-catchers in your stage arrangement.

The conductor area of the bulk cable is 0.50 mm² (AWG 21), twice as high as that of conventional woven cables. To minimise microphonic effects and to protect against external interference, it is double-shielded with a braid of bare copper wires on conductive plastic.

The silentPLUG® of this version mutes the cable when plugging in and unplugging to avoid popping and cracking. Also available with normal 6.35 mm jacks as BLACKLIGHT-EDITION PP or with one angled silentPLUG® as BLACKLIGHT-EDITION PR-SILENT.

icon
silentPLUG

The silentPLUG® mutes an instrument cable to avoid pops and squeals when (un)plugging.

ATTENTION: Plug the silentPLUG® at instrument side only! Damage may occur if connected to amplifier output.

Product information
cable CGK 150 UV
Jacket PVC black with UV-reactive cover-up (PET)
cable assign PP
connector brand NEUTRIK ®
plugs
1x 1/4" Plug mono
1x 1/4" Plug mono SILENT
technical data
Technical facts
Conductor area 0.50 mm²
AWG AWG 21
Composition of conductor 28 x 0.15 mm bare copper
Material PVC black with UV-reactive cover-up (PET)
Conductor resistance < 39 Ω / km
Shielding Braided copper screen + conductive plastic (minimizing microphonic effects)
Capacity cond.-cond. (pF/m) 88 pF / m ± 8 %
category Instrument
diameter 7,0 ± 0,2 mm
weight bulk cable 56,1 g / m
Conductor isolation TPE
Downloads
Lenghts & colours
Colour Length Matchcode item no.
3.00 BLACKLIGHT-EDITION 3 PP-G-SILENT 15219
6.00 BLACKLIGHT-EDITION 6 PP-G-SILENT 15227
3.00 BLACKLIGHT-EDITION 3 PP-O-SILENT 15221
6.00 BLACKLIGHT-EDITION 6 PP-O-SILENT 15229
