Digital Interface
elements

EFD DVT

Outlet

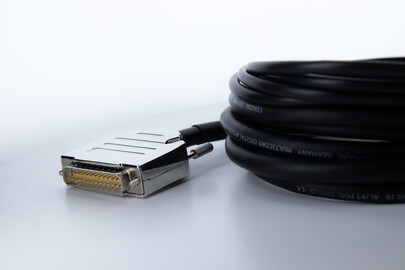

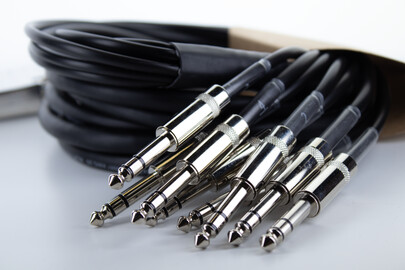

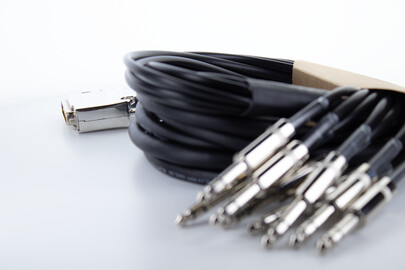

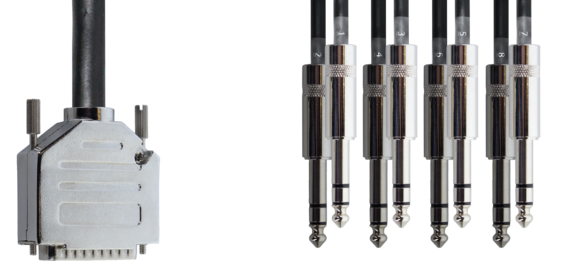

The EFD DVT is used to connect 8 channels to a digital interface with Tascam pinout. The transmission is balanced. The robust metal D-Sub connector and the eight 6.3mm stereo jacks with channel numbering together with a durable PVC jacket ensure long durability.

The conductor area of 8x2x0.14 mm² and a shielding of AL/PT foil (foil shield, 100% coverage) ensure crystal clear and undistorted signal transmission. The single strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound provide a digital interface cable that is easy to wind.

Product information
cable elements MD
Jacket PVC
cable assign DVT
connector brand -
plugs
1x D-Sub
8x 1/4" Plug stereo
technical data
Technical facts
Composition of cores 8 pairs twisted
Shielding foil (AL/PT, 100% coverage) + drain wire
Isolation PE
Conductor area 0.14 mm²
AWG AWG 26
category Digital Interface
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 127 Ohm/km
diameter 9.5 mm
Capacity cond.-cond. (pF/m) 52 pF/m
Lengths & colours
Colour Length Matchcode item no.
1.50 EFD 1,5 DVT 14800
3.00 EFD 3 DVT 14801
5.00 EFD 5 DVT 14802
