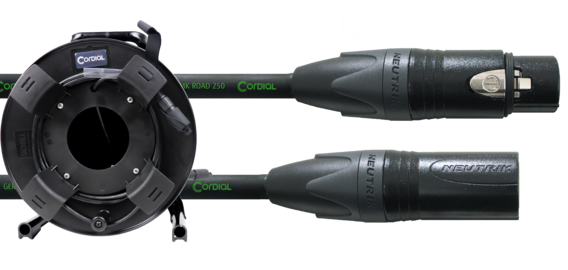

CRM FM-BLACK-SD

Robust microphone cable drum for stages and events

We tailored our "ROAD" mic cable CRM FM-BLACK-SD especially to the needs of PA and tour companies.

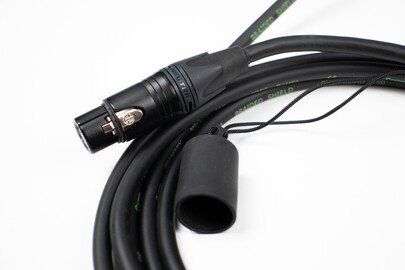

The cable is equipped with visually unobtrusive black NEUTRIK® NC3 XX connectors. This bulk cable can boast of superb transmission characteristics: low attenuation due to the 2x 0.50 mm² conductor area and, therefore, ideal for long cable runs.

The especially robust pvc mixture makes it especially durable in the hard everyday life on stage and the additional pair intermediate jacket and braided shielding make the stage cables easy to be reeled.

Transparent heat shrink tubes at both cable ends for individual labelling.

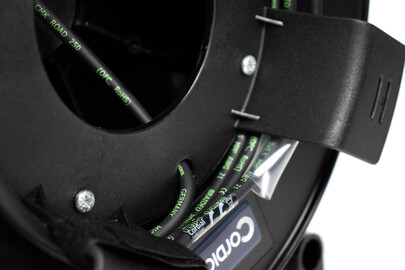

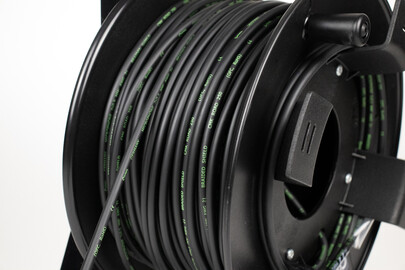

It is reeled on a robust SCHILL® 310 GT drum with 2m auxiliary spool, shorter versions without drum are also available (CRM FM BLACK).

Product information
cable
Jacket PVC
cable assign FM
connector brand NEUTRIK ®
plugs
1x XLR female 3-pole
1x XLR male 3-pole
technical data

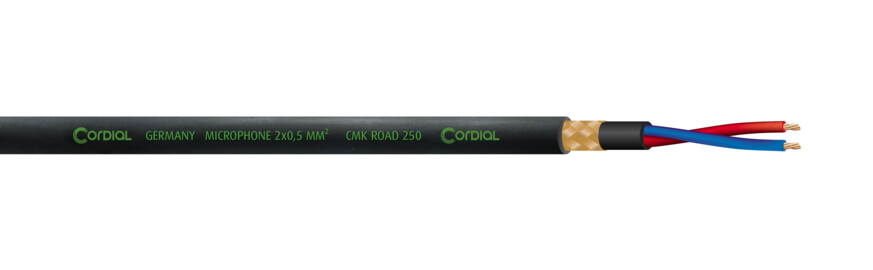

Technical facts
Composition of cores 2 cores twinned
Shielding braided screen on
page.productDetail.information.conductor isolation PE
Conductor area 0.50 mm²
AWG AWG 21
category Microphone
Composition of conductor 28 x 0.15
Material bare copper
Conductor resistance 38 Ohm/km
diameter 6.8 mm
Capacity cond.-cond. (pF/m) 80 pF/m
test voltage 1000 V eff.
weight bulk cable 60 g/m
Lenghts & colours
Colour Length Matchcode item no.
50.00 CRM 50 FM-BLACK-SD 14630
75.00 CRM 75 FM-BLACK-SD 14632
100.00 CRM 100 FM-BLACK-SD 14633
