DMX-AES/EBU-110 Ohm

CMD 16

New
Multicore Digital AES EBU

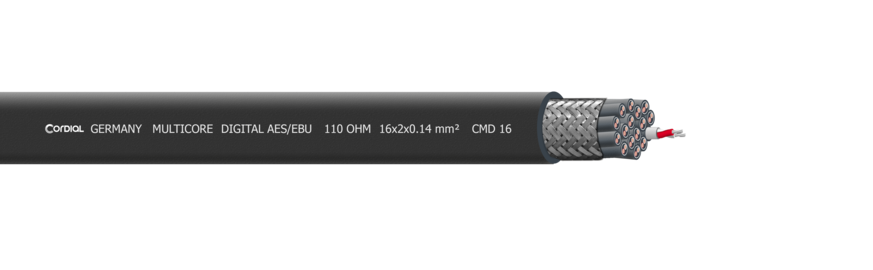

Our CMD  16 is a robust and, nevertheless, highly flexible, easily reelable DMX multicore and offers 16 channels for the transmission of lighting DMX and audio signals.

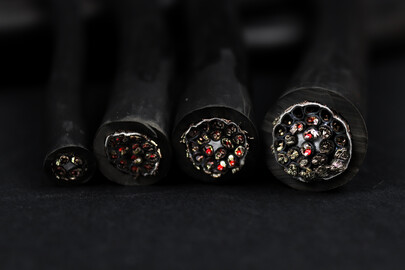

32 tinned copper strands are twisted together into 16 pairs. Each pair is shielded by a spiral shield in combination with a braid of tinned copper wires (double shielding = spiral shielding plus braided shielding). Its jacket consists of polyvinyl chloride (PVC). The combination of all these components results in a superb protection against indoor and outdoor interferences and, at the same time, outstanding transmission properties.

Due to its characteristic impedance of 110 Ω, the DMX multicore cable conforms with AES/EBU standards.

Product information
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10
Material tinned copper
Conductor resistance 140 Ohm/km
Shielding tinned copper braided screen
Capacity cond.-cond. (pF/m) 45 pF / m
Specifications
Type Digital Audio Multicore
Part no. CMD 16

Mechanical data

Conductor area 0,14 mm²
Composition of conductor 18 x 0,10 mm tinned copper
Conductor isolation PE
Composition of cores 16 twisted pairs
Screen tinned copper braided screen
Overall jacket PVC
Overall diameter 18,5 ± 0,5 mm
Weight  380 g/m
Working temperature
mobile (-15 °C) - (+60 °C)
fixed (-25 °C) - (+80 °C)
min.Bending radius
mobile ~ 185 mm
fixed ~ 92.5 mm
Electrical data
Conductor resistance 140 Ω / km
Capacity (cond./cond.) 45 pF / m
Capacity (cond./screen) 87 pF / m
Characteristic impedance 110 Ω / m
Test Voltage 500 V eff.
