Microphone

CMK 422

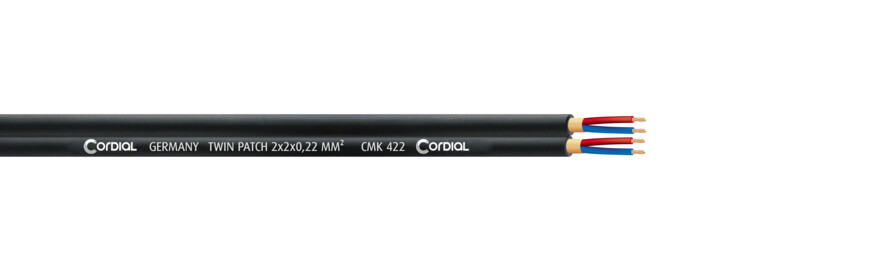

Our CMK 422 is a professional twin microphone cable that is often e.g. used in studios to connect mixing consoles, power amps and effects units as well as for rack cabling.

This twins cable features a conductor cross section of  0.22 mm² (AWG 24) and is rather slim and, therefore, very flexible. Its 2 x 2 pair stranded conductor cores are shielded with a spiral screen. The cable’s outer jacket consists of robust PVC.

Product information
Jacket PVC
technical data
Technical facts
Composition of cores 2 x 2 cores twinned
Shielding spiral wound copper wire screen
Isolation PE
Conductor area 0.22 mm²
AWG AWG 24
category Microphone
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 87 Ohm/km
diameter 3.9 x 8.2 mm
Capacity cond.-cond. (pF/m) 66 pF/m
weight bulk cable 41 g/m
Lengths & colours
Colour Matchcode item no.
CMK 422 BLACK 100 10866
CMK 422 BLACK 500 10867
