Microphone

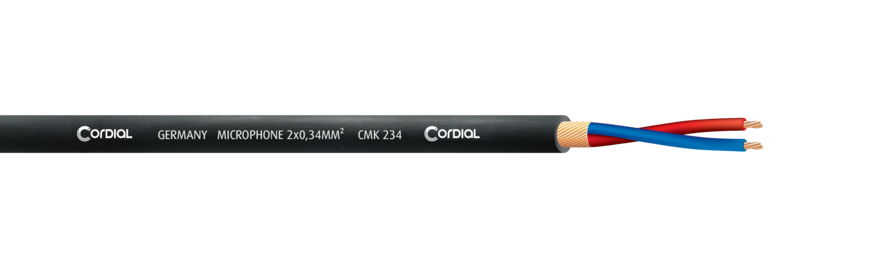

CMK 234

If you look for a robust mic cable which is ideal for really long cable runs, you will find our CMK 234 the optimal solution, especially because it features a very large conduction conductor area of 2 x 0.34 mm².

For this bulk cable we have even increased the amount of copper and, due to its design (26 x 0.127 mm strands), achieved an extremely high flexibility. These details make our CMK the technically highly advanced tool for long cable runs during LIVE events.

Product information
Jacket PVC
technical data
Technical facts
Composition of cores 2 cores twinned
Shielding Spiral wound copper wire screen
Isolation PE
Conductor area 0.34 mm²
AWG AWG 22
category Microphone
Composition of conductor 26 x 0.127 mm
Material bare copper
Conductor resistance 58 Ohm/km
diameter 6.2 mm
Capacity cond.-cond. (pF/m) 60 pF/m
test voltage 800 V eff.
weight bulk cable 53 g/m
Lengths & colours
Colour Matchcode item no.
CMK 234 BLACK 100 13484
CMK 234 BLACK 500 13483
