Y-Adapter
essentials

CFY WPP-SNOW

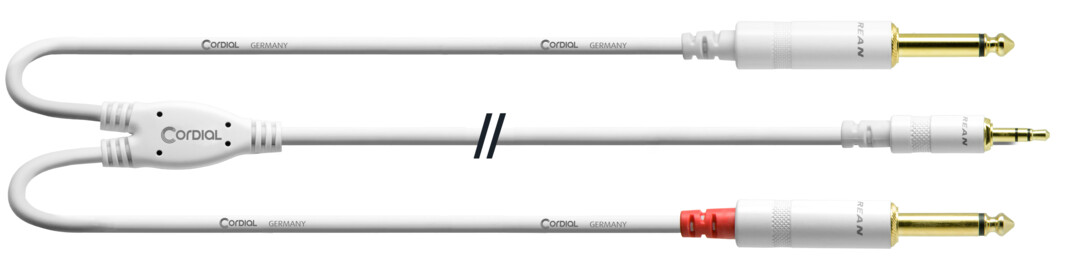

White 3.5 mm stereo jack to 2x 6.3 mm mono jack Y-adapter

This all-white Y-splitter is used to connect a mobile phone or laptop to a mixing device, a sampler unit or an audio interface. The stereo signal is split into two mono channels so that they can be mixed separately. Both channels are colour-coded.

The high-quality metal REAN® by NEUTRIK® connectors in white can be unscrewed and are protected against damage by a kink protection. The contacts are gold-plated to prevent corrosion.

The conductor area of 0.22 mm² and a braided shield of bare copper wires ensure loss-free transmission. The split is approx. 15 cm and is protected from damage by a strain-relieving fixation.

Also available as CFY WPP-LONG-SNOW with longer split or as CFY WPP in black.

Product information
Bulk cable essentials cable 2
Jacket PVC
cable assign WPP
connector brand REAN ®
plugs
1x 1/8" Plug stereo
2x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Shielding spiral shield
category Y-Adapter
Capacity cond.-cond. (pF/m) 80 pF/m
Conductor resistance 80 Ohm/km
diameter 4.3 mm | 1.69 in
Additional description Split: 15 cm
Lengths & colours
Colour Length Matchcode item no.
1.50 CFY 1.5 WPP-SNOW 12339
3.00 CFY 3 WPP-SNOW 12349
6.00 CFY 6 WPP-SNOW 12356
