Y-Adapter
intro

CFY VKK

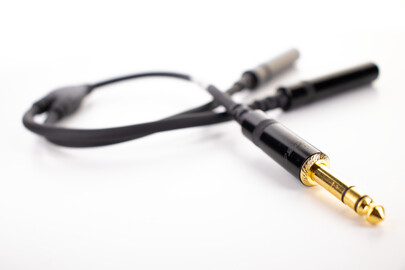

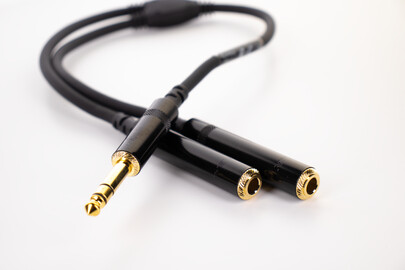

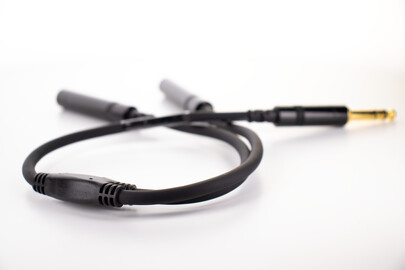

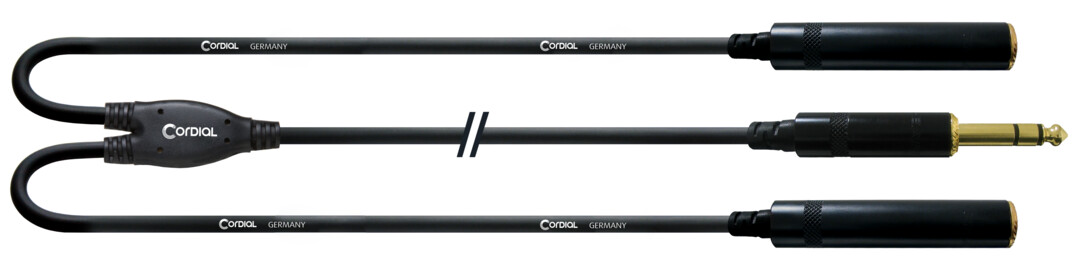

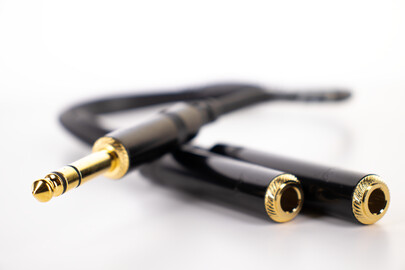

The splitter CFY VKK with 1x 6.3 mm stereo jack plug to 2x 6.3 mm stereo jack socket is a helpful tool whenever you, for example, want to split the headphone output of an audio interface.

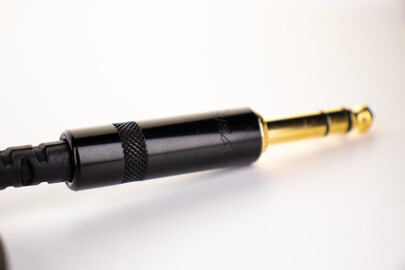

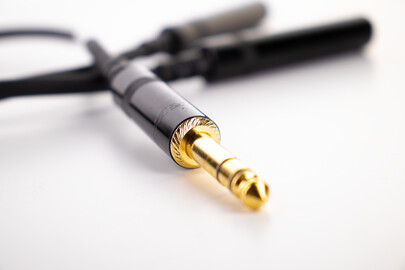

The adapter cable’s wire cross section is 2x 0.22mm² and the cable features about 15 cm long splits at each cable end. Gold plated contacts protect the REAN Neutrik® plugs against corrosion.

Product information
cable intro cable 1

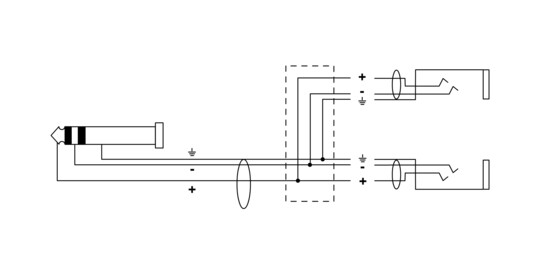

cable assign VKK
Brand REAN
plug
1 1/4" Plug stereo
Specifications / Tender
Type Microphone cable
Part no. intro cable 1

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 5,9 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number

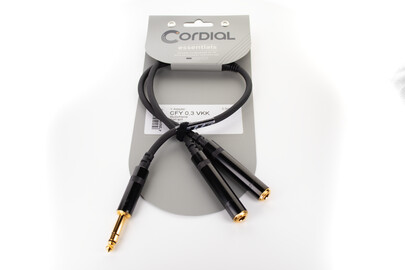

CFY 0.3 VKK
