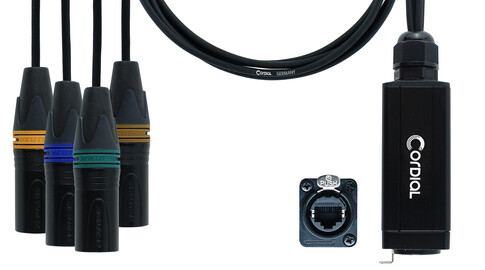

CDX MN 5 QUAD-DMX

Our etherCON QUAD DMX-AES/EBU adapter utilizes only one conductor pair of the customary 4-pair CAT cable, thus enabling the cost-efficient transmission of 4 parallel DMX or AES/EBU signals. It is equipped with the 5-pin version of black female NEUTRIK® XLR metal connectors. After a 70 cm split each single cable is TIA 568 A color-coded and ends in a special metal socket  providing strain relief and kink protection based on the tried-and-tested NEUTRIK® NE8FF. For the intermediate long cable run we recommend the use of a network cable with, at least, one overall shield. You can cover distances of up to 150 meters if you use our first-rate CORDIAL CCAT 7A LONG RUN, featuring AWG size 23.
The QUAD DMX-AES/EBU is a very sophisticated solution for PA companies and event services in the event technology sector to extend their potential scope of services with regard to utilizing high-grade network cable drums optimally.
Product information
Bulk cable essentials cable 9
Jacket PVC
cable assign M5H
connector brand NEUTRIK ®
plugs
4x NC5MXX
1x etherCON socket
technical data
Technical facts
category Light DMX
Lengths & colours
Colour Length Matchcode item no.
0.70 CDX 0.7 MN 5 QUAD-DMX 13479
