Light DMX

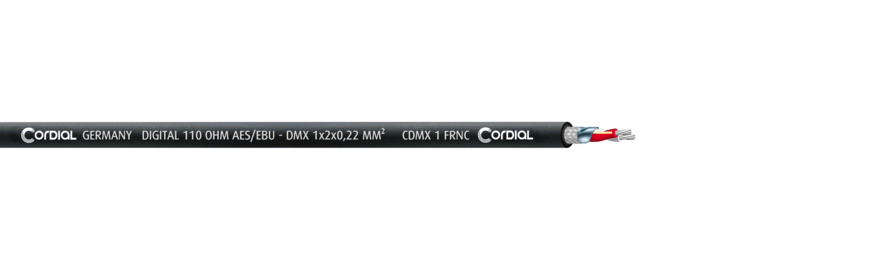

CDMX 1 FRNC

Digital Control Cable

Due to its characteristic impedance of 110 ohms and its copolymer jacket composition this digital control cable is the perfect choice for all kinds of light installations. FRNC cables avoid the release of harmful essences in case of fire because they do not contain any halogens. This is the statutory requirement for the use of CDMX 1 FRNC cables for installations in public buildings.

Due to its small cross-section and low stiffness, the CDMX 1 FRNC is easy to install. The minimum bending radius of 46 mm allows easy installation at corners and edges.

Product information
Jacket FRNC
technical data
Technical facts
Composition of cores 1 pair twisted
Shielding spiral wound tinned copper wire
Isolation geschäumtes Spezial Polyolefin
Conductor area 0.22 mm²
AWG AWG 24
category DMX-AES/EBU-110 Ohm
Composition of conductor 7 x 0.20 mm
Material tinned copper
Conductor resistance 95 Ohm/km
diameter 4.6 mm
Capacity cond.-cond. (pF/m) 42 pF/m
test voltage 500 V eff.
weight bulk cable 34 g/m
Additional description halogenfrei, flammwidrig / halogen-free, flame-retard
Lengths & colours
Colour Matchcode item no.
CDMX 1 BLACK 100 FRNC 10427
CDMX 1 BLACK 500 FRNC 10429
